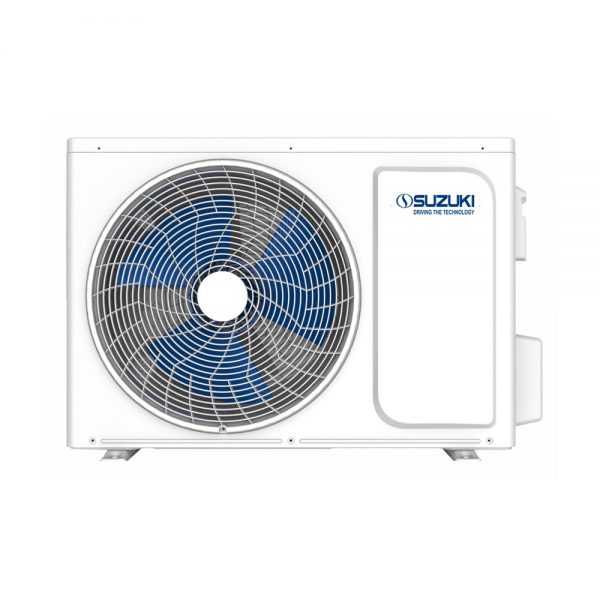

Split Type Air Conditioner Tanoshi 18000

Split Type Air Conditioner Tanoshi 18000

  • 0.1 °C Accurate Sense of Technology
  • 180° since wave control
  • Quich Comfort
  • DC Two-Spool Compressor
  • -20 °C Ultra-low Term Start
  • Wide Voltage Range Start

Additional information

Power

single-phase a.c.

Rated Voltage

220-240 V

Rated frequency

50 Hz

Maximum Input Power (W)

2130

Maximum Input Current (A)

10.5

Cooling Capacity (Btu/h)

18000

Heating Capacity (Btu/h)

18500

Power input Cooling (w)

1640

Power input Heating (w)

1500

Current input Cooling (A)

7.7

Current input Heating (A)

7.2

Noise(indoor/outdoor) dB(A)

45.55

Air Circulation quantity(indoor) (m3/h)

850

Compressor Locked Current (A)

33

Design Pressure Lo (MPa)

1.15

Design Pressure Hi (MPa)

4.15

The maximum operating pressure indoor (MPa)

4.2

The maximum operating pressure outdoor (MPa)

4.2

Refrigerant filling quantity(R410a) (Kg)

1.30

Waterprooft Level(Outdoor)

IP 24

Protection type for shockproof

Class I

Climate application type

T1
