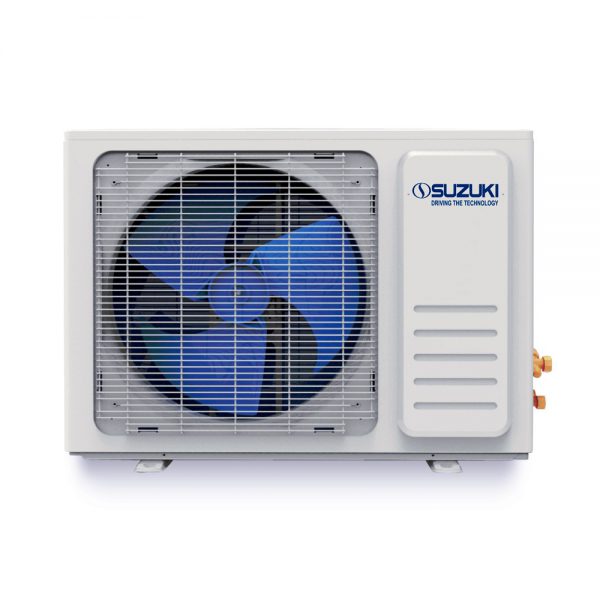

Split Type Air Conditioner Tanoshi 12000

Split Type Air Conditioner Tanoshi 12000

  • 0.1 °C Accurate Sense of Technology
  • 180° since wave control
  • Quich Comfort
  • DC Two-Spool Compressor
  • -20 °C Ultra-low Term Start
  • Wide Voltage Range Start

Additional information

Power

single-phase a.c.

Rated Voltage

220-240 V

Rated frequency

50 Hz

Maximum Input Power (W)

1520

Maximum Input Current (A)

7.6

Cooling Capacity (Btu/h)

12000

Heating Capacity (Btu/h)

12500

Power input Cooling (w)

1090

Power input Heating (w)

1010

Current input Cooling (A)

5.1

Current input Heating (A)

4.7

Noise(indoor/outdoor) dB(A)

42.52

Air Circulation quantity(indoor) (m3/h)

550

Compressor Locked Current (A)

28

Design Pressure Lo (MPa)

1.15

Design Pressure Hi (MPa)

4.15

The maximum operating pressure indoor (MPa)

4.2

The maximum operating pressure outdoor (MPa)

4.2

Refrigerant filling quantity(R410a) (Kg)

0.96

Waterprooft Level(Outdoor)

IP 24

Protection type for shockproof

Class I

Climate application type

T1
