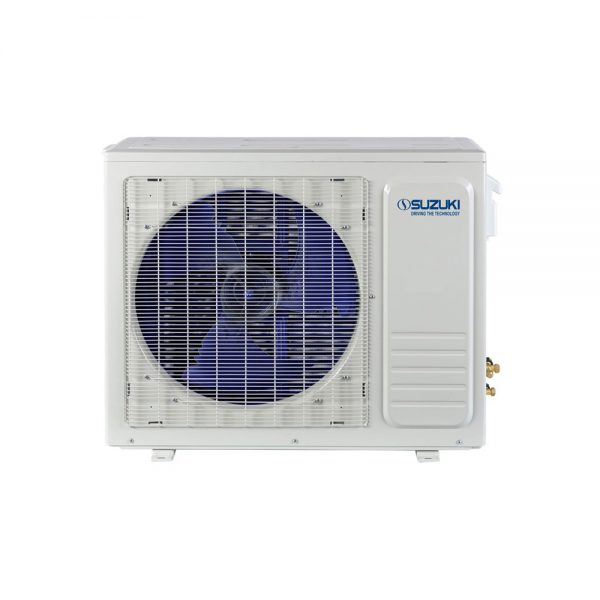

Split Type Air Conditioner Tanoshi 30000

Split Type Air Conditioner Tanoshi 30000

  • 0.1 °C Accurate Sense of Technology
  • 180° since wave control
  • Quich Comfort
  • DC Two-Spool Compressor
  • -20 °C Ultra-low Term Start
  • Wide Voltage Range Start

Additional information

Power

single-phase a.c.

Rated Voltage

220-240 V

Rated frequency

50 Hz

Cooling Capacity (Btu/h)

30000

Heating Capacity (Btu/h)

30500

Power input Cooling (w)

2730

Power input Heating (w)

2470

Current input Cooling (A)

12.8

Current input Heating (A)

11.6

Noise(indoor/outdoor) dB(A)

50.59

Air Circulation quantity(indoor) (m3/h)

1200

Compressor Locked Current (A)

57

Design Pressure Lo (MPa)

1.15

Design Pressure Hi (MPa)

4.15

The maximum operating pressure indoor (MPa)

4.2

The maximum operating pressure outdoor (MPa)

4.2

Refrigerant filling quantity(R410a) (Kg)

1.80

Waterprooft Level(Outdoor)

IP 24

Protection type for shockproof

Class I

Climate application type

T1

Maximum Input Current (A)

16

Maximum Input Power (W)

3350
