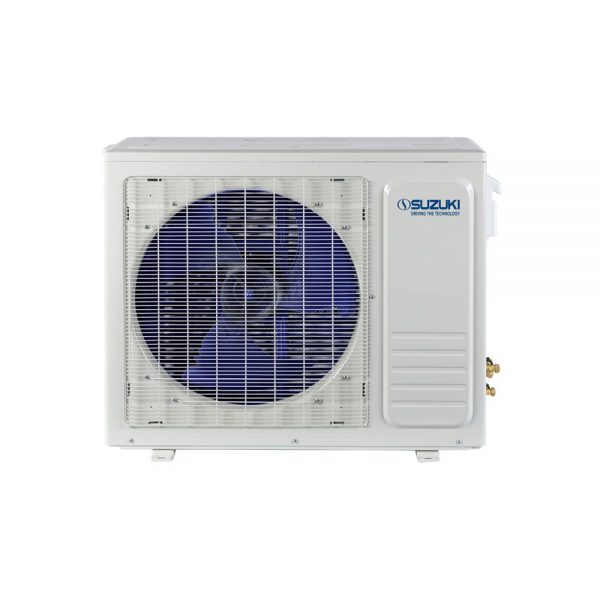

Split Type Air Conditioner Tanoshi 24000

Split Type Air Conditioner Tanoshi 24000

  • 0.1 °C Accurate Sense of Technology
  • 180° since wave control
  • Quich Comfort
  • DC Two-Spool Compressor
  • -20 °C Ultra-low Term Start
  • Wide Voltage Range Start

Additional information

Power

single-phase a.c.

Rated Voltage

220-240 V

Rated frequency

50 Hz

Maximum Input Current (A)

14.0

Maximum Input Power (W)

2800

Cooling Capacity (Btu/h)

24000

Heating Capacity (Btu/h)

24500

Power input Cooling (w)

2190

Power input Heating (w)

1980

Current input Cooling (A)

10.2

Current input Heating (A)

9.3

Noise(indoor/outdoor) dB(A)

49.57

Air Circulation quantity(indoor) (m3/h)

1200

Compressor Locked Current (A)

48

Design Pressure Lo (MPa)

1.15

Design Pressure Hi (MPa)

4.15

The maximum operating pressure indoor (MPa)

4.2

The maximum operating pressure outdoor (MPa)

4.2

Refrigerant filling quantity(R410a) (Kg)

1.77

Waterprooft Level(Outdoor)

IP 24

Protection type for shockproof

Class I

Climate application type

T1
